Family Roll Bar 66-77 Bronco Pro Cage Kit - Tall FREE SHIPPING

593645

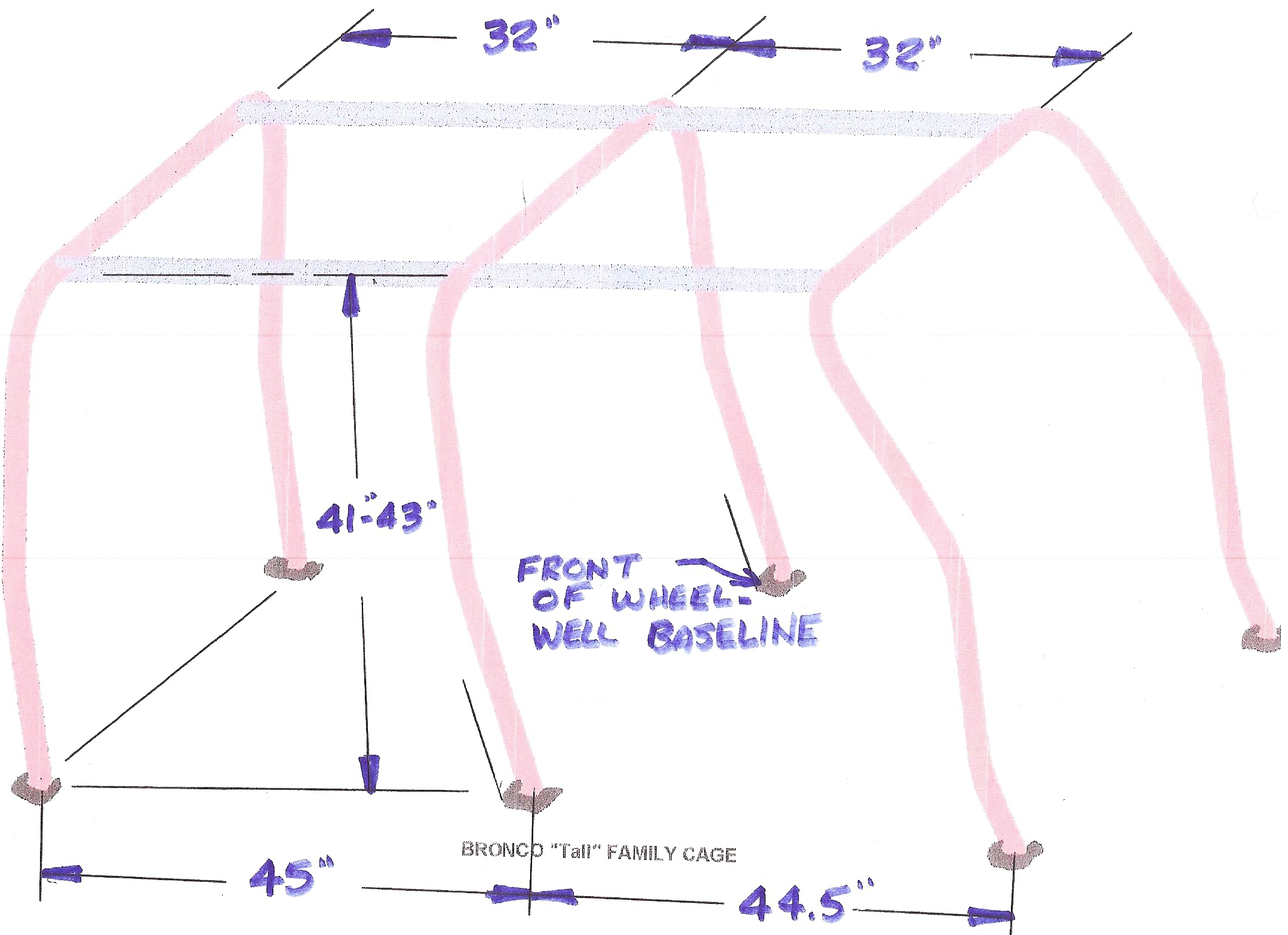

Complete 6 Point Family Pro Cage Kit - Tall

Hoops are split 2 piece with sleeve for UPS shipping

Constructed from 1/8" THICK TUBING, 2" O.D., Seat and safety restraint tubes 1 1/2" O.D. Connecting bars Pre-Notched on One End, Hoops and connecting bars require trimming and welding. Hoop bent different than our "Std" Kit allows 4" more rearward headroom for all occupants

Same height as our standard 6 point family kit but with middle and
rear hoops bent for more head room. Clears soft tops but top will not fold down.

Fits under all tops, Clears E-Brake and Wipers (see below),
Glove box will approx 1/2 way, factory electric wipers will require
the front hoop be angled or backed off to clear and will not
be parallel to windshield as shown in some photos.
NOTE:
Hoops are longer than required and will require cutting!!!!!
Connectors tubes are notched on one end and will require
notching the opposite end.


To Upgrade to DOM (High Strength Drawn Over Mandrel) Tube and ADD CUSTOM ITEMS such as Additional bars, Gussets, Seat Mounts ect.
Click on the option boxes below this description.

Material: 2" O.D. x 1/8" thick Mild Steel H.R.E.W. (Hot Rolled Electric Welded) Tubing. We use a Mandrel Bender with a 6.5" Centerline Bend Radius, Internal tubes are 1.5" O.D. x .12" thk.

Welding and Trimming is Required, All tubes and hoops ship longer lengths than needed for
customization.

Fits Steel Body and most fiberglass bodys
Shipping: Ships free to U.S lower 48 states, (Hawaii and Alaska pay actual shipping costs)
Was: $999.00
Sale: $899.99

Customize Your Item

- Add (2) Diagonal Kicker Bars -
- Add Grab Handle -
- Add Gusset Package -
- Add Seat Belt Weld In Bung -
- Add Frame Tie In Kit Front Hoop -
- Add Tie Into Frame Kit Main Hoop -
- D.O.M. Tubing Upgrade -
- Full One piece Hoops -
