Family Roll Cage Kit "Std" 66-77 Bronco 6 Point - 30 FREE SHIPPING
593636

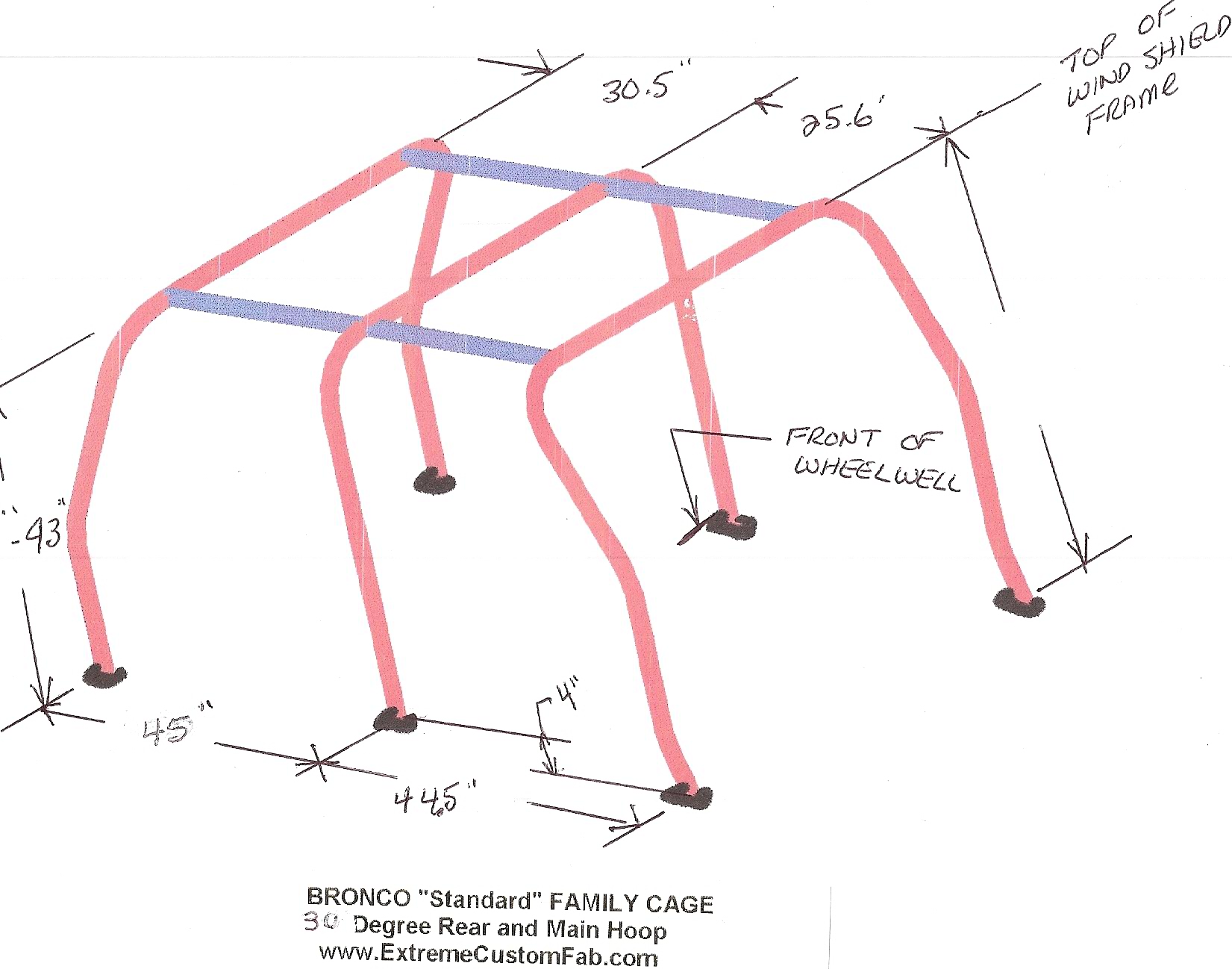

Complete 6 Point Family Cage Kit :
(3) HOOPS (Hoops are split 2 piece with sleeve for UPS shipping)
(4) CONNECTING SPREADER BARS (pre-notched one end)
(6) FOOTPLATES
Fits under all tops, Clears E-Brake and Wipers (see below), Will allow soft top to fold down,
Glove box will approx 1/2 way, factory electric wipers will require
the front hoop be angled or backed off to clear and will not
be parallel to windshield as shown in some photos.
NOTE:
Hoops are longer than required and will require cutting!!!!!
Connectors tubes are notched on one end and will require
notching the opposite end.
To Upgrade to DOM (High Strength Drawn Over Mandrel) Tube and ADD CUSTOM ITEMS such as Additional bars, Gussets, Seat Mounts ect.
Click on the option boxes below this description.
Material: 2" O.D. x 1/8" thick Mild Steel H.R.E.W. (Hot Rolled Electric Welded) Tubing. We use a Mandrel Bender with a 6.5" Centerline Bend Radius
Welding and Trimming is Required, All tubes and hoops ship longer lengths than needed for
customization.
Fits Steel Body and most fiberglass bodys
(3) HOOPS (Hoops are split 2 piece with sleeve for UPS shipping)
(4) CONNECTING SPREADER BARS (pre-notched one end)
(6) FOOTPLATES
Fits under all tops, Clears E-Brake and Wipers (see below), Will allow soft top to fold down,
Glove box will approx 1/2 way, factory electric wipers will require
the front hoop be angled or backed off to clear and will not
be parallel to windshield as shown in some photos.
NOTE:
Hoops are longer than required and will require cutting!!!!!
Connectors tubes are notched on one end and will require
notching the opposite end.
To Upgrade to DOM (High Strength Drawn Over Mandrel) Tube and ADD CUSTOM ITEMS such as Additional bars, Gussets, Seat Mounts ect.
Click on the option boxes below this description.
Material: 2" O.D. x 1/8" thick Mild Steel H.R.E.W. (Hot Rolled Electric Welded) Tubing. We use a Mandrel Bender with a 6.5" Centerline Bend Radius
Welding and Trimming is Required, All tubes and hoops ship longer lengths than needed for
customization.
Fits Steel Body and most fiberglass bodys
Availability: 3-10 day build time
Shipping: Ships free to U.S lower 48 states, (Hawaii and Alaska pay actual shipping costs)
Pricing:
$999.00
Description
1966 bronco roll cage,1967 bronco roll cage,1968 bronco roll cage,1969 bronco roll cage,1970 bronco roll cage,1973 bronco roll cage,1971 bronco roll cage,1972 bronco roll cage,1974 bronco roll cage,1975 bronco roll cage,1976 bronco roll cage,1977 bronco roll cage, bronco roll bar, protofab roll bar,protofab roll cage, wild horses roll bar,6 point cage,family roll cage,complete off road roll cage,dom roll bar,dom roll cage
Details
- 593636
- BRO-FAM-STD-EWS-KIT
- Extreme Custom Fabrication
- 3-10 day build time
- New
Shipping Information
- Item Requires Shipping
- 70.0 lbs.
- W25.0000” x H9.0000” x L57.0000”
- FREE SHIPPING on orders over $100.00 online orders only to lower 48 U.S.
- Ships free to U.S lower 48 states, (Hawaii and Alaska pay actual shipping costs)
