Family Roll Bar 66-77 Bronco Pro Cage Kit - Std FREE SHIPPING

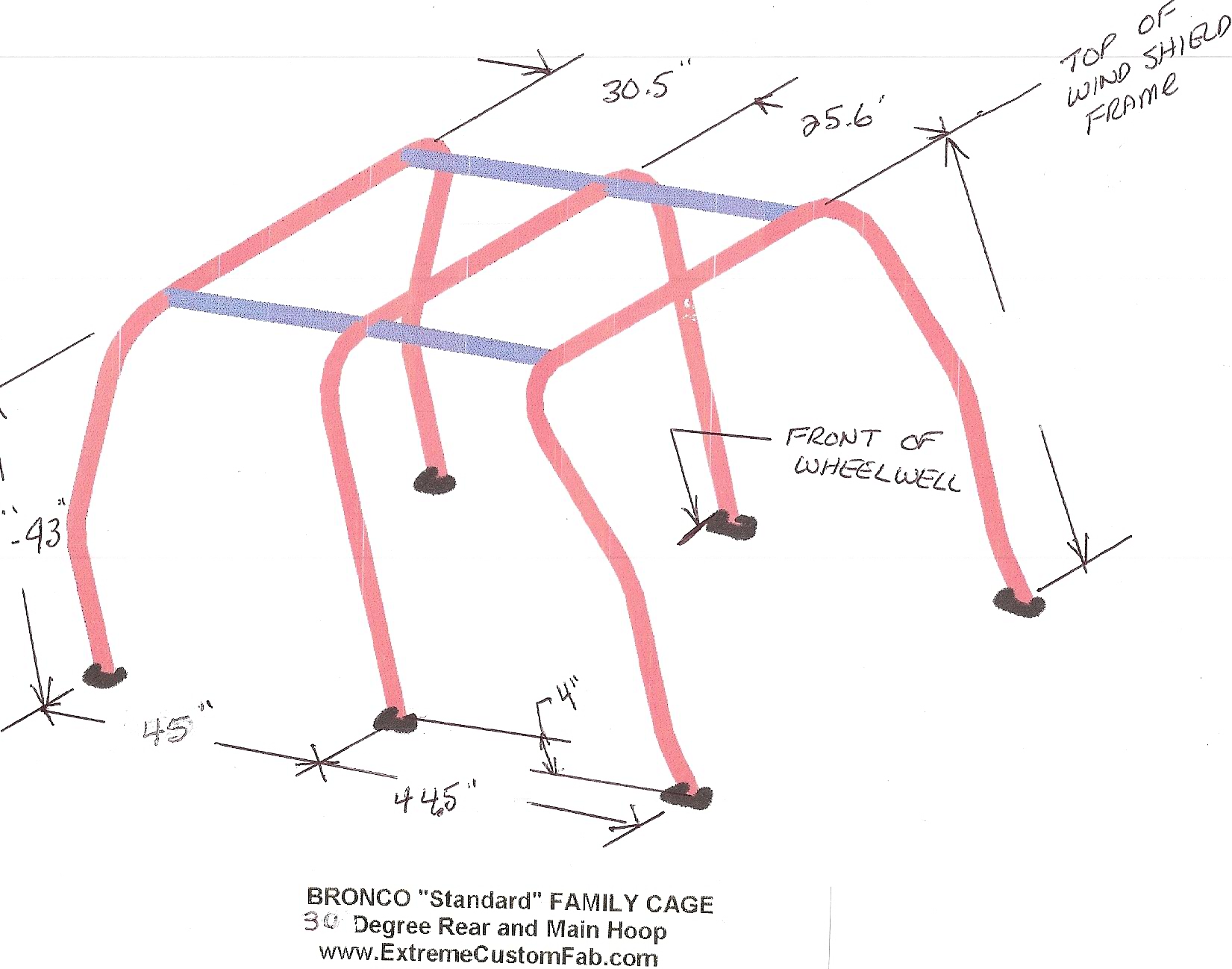

Complete 6 Point Family Pro Cage Kit

Hoops are split 2 piece with sleeve for UPS shipping



Constructed from 1/8" THICK TUBING, 2" O.D., Seat and safety restraint tubes 1 1/2" O.D. Connecting bars Pre-Notched on One End, Hoops and connecting bars require trimming to desired height and welding

Fits under all tops, Clears E-Brake and Wipers (see below),will allow soft top to fold down,
Glove box will approx 1/2 way, factory electric wipers will require
the front hoop be angled or backed off to clear and will not
be parallel to windshield as shown in some photos.
NOTE:
Hoops are longer than required and will require cutting!!!!!
Connectors tubes are notched on one end and will require
notching the opposite end.

To Upgrade to DOM (High Strength Drawn Over Mandrel) Tube and ADD CUSTOM ITEMS such as Additional bars, Gussets, Seat Mounts ect.
Click on the option boxes below this description.

Material: 2" O.D. x 1/8" thick Mild Steel H.R.E.W. (Hot Rolled Electric Welded) Tubing. We use a Mandrel Bender with a 6.5" Centerline Bend Radius

Welding and Trimming is Required, All tubes and hoops ship longer lengths than needed for
customization.

Fits Steel Body and most fiberglass bodys
