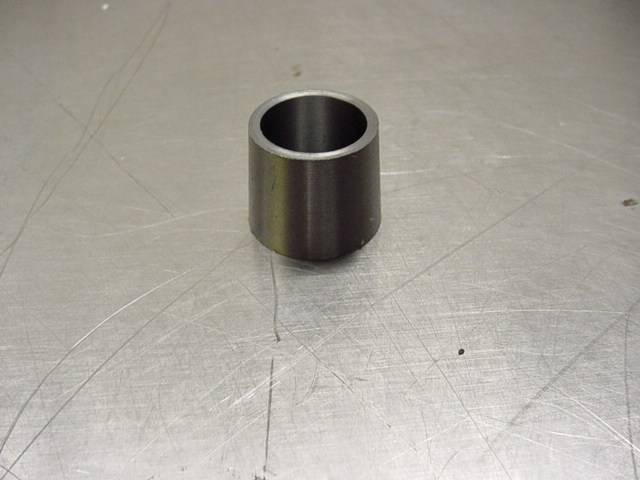

BRAND NEW QUALITY MADE TIE ROD BUSHING 7 DEGREE MADE IN U.S.A., THIS IS THE CORRECT BUSHING TIE ROD OVER CONVERSIONS OR REPAIRING A WORN KNUCKLE, Reamer is required to install , will also fix knuckle holes drilled to .75" dia.
designed to fit the following taper:
major diameter: .776" / minor diameter .675"
Fits 1 ton ES 2026, 2027, 2233, 2234 Tie Rod Ends
Sorry we do not have a list of all applications
Using a 1/2" Drill at a slow speed, use adequate cutting fluid.
You will want to check the hole often and test fit the tie rod end stud as an assembly,
you will continue to ream and enlarge the tapered hole to approx.
It is more important to test fit the bushing and tie rod stud as an assembly than anything,
you want to get the hole to the point that the castle nut will
allow the cotter pin to go thru the slot on the nut / hole on the stud
when properly tightened. I hope that answers your question,
any other concerns, please email us.
When using our Tie Rod Over / Tie Rod Repair bushing check fit
with the bushing ON the tie rod stud.
Reamer is to be a 7 degree (actually 7.13 degrees).
