CUSTOM TIE ROD / DRAG LINK DANA 44 60 Bronco Jeep 4X4 1 1/2" D.O.M. (Made to your Specs)

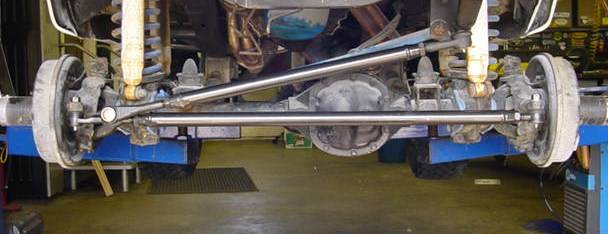

Fully Assembled "Y" set up

MEASUREMENTS REQUIRED :

-DRIVER SIDE STEERING KNUCKLE TIE ROD HOLE CENTER TO PASSENGER SIDE STEERING KNUCKLE TIE ROD HOLE CENTER. ( VEHICLE STEERING STRAIGHT AHEAD AND ALIGNED)

-PITMAN ARM DRAG LINK HOLE CENTER (Gear box centered) TO PASSENGER SIDE STEERING KNUCKLE TIE ROD HOLE CENTER. ( VEHICLE STEERING STRAIGHT AHEAD AND ALIGNED)


-WE WILL ALSO NEED IF YOU ARE USING TIE ROD OVER OR TIE ROD UNDER YOUR STEERING KNUCKLE?


Reamer Required


made from UNBREAKABLE 1 1/2" O.D. D.O.M. Tubing,

Reaming of pitman arm is required, fits under or over the knuckle (ream knuckles from top for over the knuckle with purchase of our Tie Rod Over Bushings) Drag link connects to our passenger side tie rod which has a provision for the draglink which you will ream as required for your application, we subtact4" from the measurements you give us to make this work

Reamer Required, Designed for factory knuckles not high steer.
